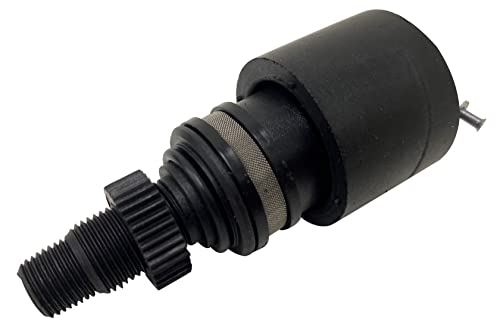

THB 90 Series Replacement Filter KIT (Internal Auto Float Drain)

THB 90 Series Replacement Filter KIT (Internal Auto Float Drain)

• Internal Automatic Float Drain for THB Metal Bowls
• Please Note: Internal Float drains on In-Line filter bowls are replacement items. Overtime debris from your compressed air lines will clog the internals of the Auto Drain. Auto drains should be replaced every 6-12 months.
• Threaded bottom tip is 1/8" Male NPT. Dimensions: 3" Height, 1-1/8" Width widest part of the body.
• Max input/output pressure for this auto drain is 175 PSI MAX.
• To install, remove the old manual or auto drain from your old bowl. Remove the plastic nut from the Auto drain and set to the side. Drop this Auto drain into the THB Metal bowl with the threaded side down. Once the threaded end us protruding from the bottom of the THB Metal bowl, screw on the plastic nut to clamps and tighten the drain to the bottom of the bowl.
