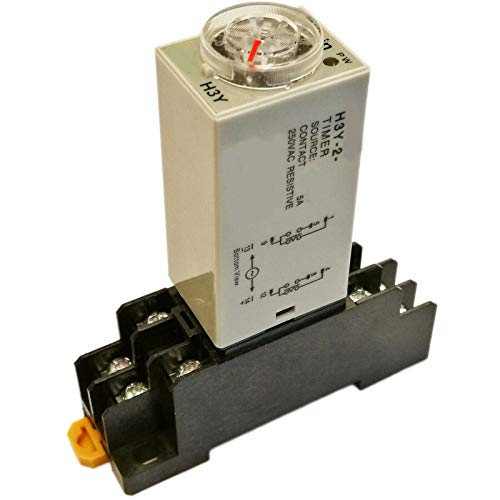

DC 24V Delay Timer Time Relay 0-60S DPDT 8-Pin & Base Socket H3Y-2

DC 24V Delay Timer Time Relay 0-60S DPDT 8-Pin & Base Socket H3Y-2

• H3Y-2 Timer Delay Relay Rating: DC 24V.
• Rated Time Range: 0-60 Seconds.
• Contact Type: 5A 250VAC Resistive Load.
• Note: Don't take off the front knob Please .Rotate the front knob to adjust the time,8 pin terminals for installation, On-Up two red indicator light.
• Package : 1 x Time Relay & 1 x Socket. Function: Timer Delay Relay control for the industrial automation system and mechanical equipment.

Product Name: Timer Delay Relay <br> Rating voltage: DC 24V<br><br> Contact Type: 5A 250VAC Resistive Load<br><br> Rated Time Range: 0-60 Seconds<br><br> Model Number: H3Y-2<br><br> Pin Number : 8 Pin<br><br> Frequency: 50/60Hz<br><br> Power consumption: ≤5W<br><br> Contact Type: DPDT, 2NO,2NC<br><br> Operating temperature: -10°C to 50°C<br><br> Mechanical life: 10000000 times<br><br> Electrical life: 500000 times<br><br> Indicator Operation: On-up two led indicator light <br><br> Socket Size: 7.5 x 3.2 x 2.2cm/3" x 1.3" x 0.87"(L*W*T)<br><br> Mount Rail Type: 35mm DIN Rail<br><br> Overall Size(Approx): 5.7 x 2.8 x 2.1cm/2.2" x 1.1" x 0.8"(L*W*H)<br><br> External Material: Plastic, Aluminum, Metal<br><br> Net Weight: 73g<br><br> Work mode: electricity delay<br><br> Package included<br><br> 1 x Delay Timer Time Relay<br><br> 1 x H3Y-2 Relay Base<br><br>
