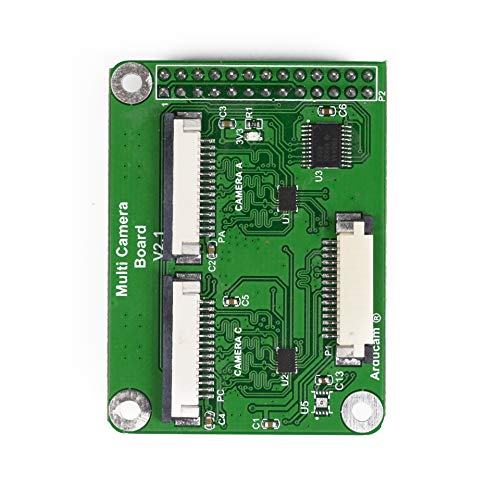

Arducam Multi Camera Adapter Module V2.1 for Raspberry Pi 3B+, Pi 3, Pi 2, Model A/B/B+, Work with 5MP or 8MP Cameras

Arducam Multi Camera Adapter Module V2.1 for Raspberry Pi 3B+, Pi 3, Pi 2, Model A/B/B+, Work with 5MP or 8MP Cameras

• Accommodate up to four 5MP or 8MP Raspberry Pi cameras on an multi camera adapter board
• Support Raspberry Pi Model A/B/B+, Pi 2 and Raspberry Pi 3,3b+. Case and tripod ASIN: B07L49Z7H8
• All camera ports are FFC (flexible flat cable) connectors, Demo: youtu.be/DRIeM5uMy0I
• Cameras work in sequential, not simultaneously. High resolution still image photography demo
• Note: No mixing of 5MP and 8MP cameras is allowed. Low resolution, low frame rate video surveillance demo with 4 cameras

Compared to previous multi-camera adapter module which can only support 5MP RPI cameras, the new multi-camera adapter module V2.1 is designed for connecting maximum four 5MP or 8MP camera to a single CSI camera port on a Raspberry Pi board. Considering that the high-speed CSI camera MIPI signal integrity is sensitive to a long cable connection, this adapter board does not support stacking and can only connect 4 cameras at maximum. Because It covers most of the use cases like 360-degree view photography and surveillance, adding more cameras will degrading the camera performance. <br/> <br/> Please note that Raspberry Pi multi-camera adapter board is a nascent product that may have some stability issues and limitations because of the cable's signal integrity and RPi's closed source video core libraries, so use it at your own risk.<br/> <br/> <b>Features</b> <br/>Accommodate 4 Raspberry Pi cameras on a single RPi board <br/>Support 5MP OV5647 or 8MP IMX219 camera, no mixing allowed <br/>3 GPIOs required for multiplexing <br/>Cameras work in sequential, not simultaneously <br/>Low resolution, low frame rate video surveillance demo with 4 cameras <br/>High resolution still image photography demo <br/>Optional 3D printed enclosure and tripod for official pi camera board ASIN: B07L49Z7H8
