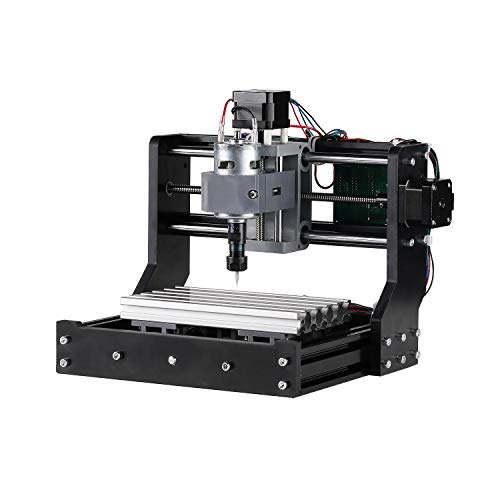

SainSmart Genmitsu CNC 1810-PRO Router Kit GRBL Control 3 Axis Plastic Acrylic PCB PVC Wood Carving Milling Engraving Machine, XYZ Working Area 180x100x45mm

SainSmart Genmitsu CNC 1810-PRO Router Kit GRBL Control 3 Axis Plastic Acrylic PCB PVC Wood Carving Milling Engraving Machine, XYZ Working Area 180x100x45mm

• Compact & Affordable: Our most affordable CNC Router Kit, the Genmitsu CNC 1810-PRO is an upgraded version of 1610, boasts the same outstanding performance as 1610, in a compact and affordable package. With an effective engraving area of 180 x 100 x 45 mm.(7.1 x 3.9 x 1.8")
• Integrated: With an integrated mainboard and custom software, communication between the software and hardware is seamless by design.
• Software: The Genmitsu uses Grbl, high performance, open-source software for controlling movement, and runs on Arduino. Its dependability and simplicity make Grbl an industry standard, so there's no lack of support and resources available when you get stuck.
• Versatile: Capable of cutting all types of plastics, woods, acrylics, PVCs, soft aluminum, and especially for PCBs, the Genmitsu can be used on a wide range of projects and materials.
• Simple Assembly: Assembly instructions and video link are provided, but if you get stuck, please contact us with any questions that arise or check out the SainSmart wiki page. ONE YEAR WARRANTY covered.

<b>Overview</b><br> <br> Designed with the absolute beginner in mind, the Genmitsu is an excellent self-teaching tool which allows you to <br> try your ideas on an inexpensive platform without the risk of damaging expensive equipment. Since it's built on <br> Arduino and Grbl (both open source) support, tutorials, additional training, and new ideas to try are plentiful and <br> easy to find elsewhere online.<br> <br> <b>SPECIFICATIONS</b><br> <br> Effective Engraving Area: 180 x 100 x 45 mm(7.1 x 3.9 x 1.8")<br> Frame Size: 300 x 260 x 250 mm(11.8 x 10.2 x 9.8")<br> Frame Material: Aluminum<br> Axis Bracket Material: PF+ Aluminum<br> Z-Axis Component Material: Nylon<br> Spindle: 775 motor, 12V, 3000 RPM; 24V, 7000 RPM; 36V, 9000 RPM<br> Rated power: 60W; Maximum power: 120W<br> Step Motor: 1.3 A, 12V, 0.25 Nm torque (2.2 in lb)<br> Drill Bits: Tip 0.1 mm, 20 degree, Diameter 3.175 mm<br> Supported OS: Windows XP, Windows 7, Windows 8, Windows 10<br> Software: Grbl control(Candle)<br> Power Supply: 24V/4.75A UL Certificated<br> <br><b>TIPS</b><br> <br> 1. No CAM software is provided, you will need to download some other software to generate your<br> gcode for automated controlling, there are several free good ones online that are easy to work with. Such as Inkscape, Easel, and Carbide Create etc..<br> 2. When installing the motherboard, you need to install the four plastic gaskets attached to avoid direct<br> contact between the motherboard and the metal bracket, resulting in short circuit of the motherboard.<br><br> <b>DOWNLOAD:</b><br> <br> http://s3.amazonaws.com/s3.image.smart/download/101-60-281/101-60-281_1810PRO.zip<br> <br> <b>WHAT'S INCLUDED?</b><br> <br> 1 x DIY Router Kit<br> 1 x Extension Rod with ER11 Collet<br> 4 x Plate Clamp<br> 10 x CNC Router Bits<br>1 x Manual<br>
