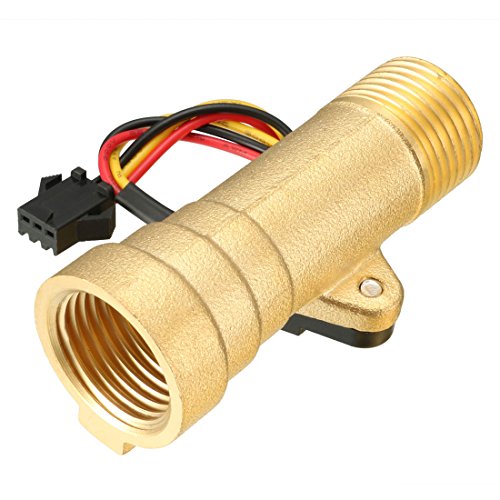

uxcell G1/2" Hall Effect Liquid Water Flow Sensor Switch Flowmeter Meter DC 5V 1.25-30L/min SEN-HZ21FB

uxcell G1/2" Hall Effect Liquid Water Flow Sensor Switch Flowmeter Meter DC 5V 1.25-30L/min SEN-HZ21FB

• All materials are in line with SGS testing standards.
• Brass material, small size, easy to install.
• The water flow sensor is applied for water heater, and can be used as flow switch.
• Flow Range: 1.25-30L/min; Maximum Water Pressure: 1.75MPa
• Stable, high temperature, low water pressure start.

1. The Water Flow Sensor is light, nimble outline, small size and easy to install. All materials are in line with SGS testing standards.<br />2. There is an integrated hall effect sensor that outputs an electrical pulse with every revolution. The hall effect sensor is sealed from the water pipe and allows the sensor to stay safe and dry.<br />3. Stable, high temperature, low water pressure start.<br />4. Can use for Water heaters, credit card machines, water vending machine, flow measurement device.<br />5. Three wire connection: Red for positive, black for negative, yellow for pulse signal.<br /><br />Specifications:<br />Product Name: Water Flow Sensor<br />Material: Brass(Shell)<br />Liquid Temperature: Not More Than 60C<br />Thread Diameter: G1/2<br />Flow Range: 1.25-30L/min<br />Working Voltage Range: DC5V<br />Max Current: 10mA<br />Maximum Water Pressure: 1.75MPa<br />Connector: Male SM-3P<br />Cable Length: 15cm<br />Size: 68mm x 26mm x 30mm(L*W*H)<br />Ingress Protection Rating: IP65<br />Color: Brass Tone<br />Net Weight: 88g<br /><br />Package Included:<br />1 x Water Flow Sensor<br /><br />Note:<br /><br />1. Installed in accordance with flow direction in the product, otherwise there is no signal output.<br />2. A filter screen must be installed at the inlet of the sensor, in order to avoid particles and debris entering the sensor.
