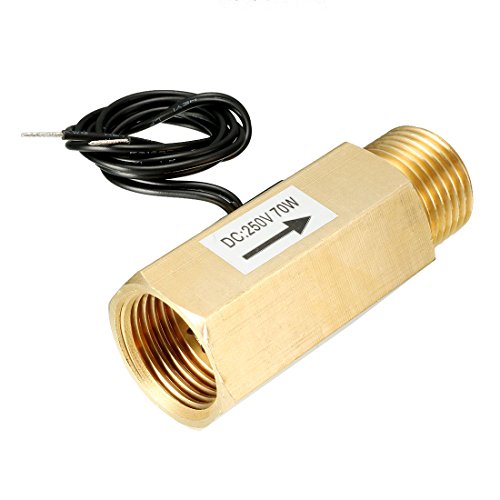

uxcell G1/2 Hall Effect Liquid Water Flow Sensor Switch Flowmeter Counter Meter 1.2-12L/min SEN-CL21F

uxcell G1/2 Hall Effect Liquid Water Flow Sensor Switch Flowmeter Counter Meter 1.2-12L/min SEN-CL21F

• Stable, high temperature, low water pressure start.
• Brass material, small size, easy to install.Hall element is imported, water-proof design to prevent water ingress,The inside of the impeller is inlaid with a stainless steel shaft and is always wear-resistant.
• The water flow sensor is applied for water heater, and can be used as flow switch.
• All materials are in line with SGS testing standards.
• Flow Range: 1.2-12L/min; Maximum Water Pressure: 1.75 Mpa

1.Water Flow Switch adopts a Magnetic Reed Switch, G1/2 threaded ports each end. Equipped with filter water entry.<br />2.Mainly used for water heater, boiler, water dispensers, coffee machines, hot card machines, steam equipment, water system, the campus card sales, selling self-help water systems, water treatment equipment, cooling systems, mechanical equipment, instrumentation.<br /><br />Specifications:<br />Product Name: Water Flow Sensor<br />Material: Brass(Shell)<br />Liquid Temperature: Not More Than 60C<br />Thread Diameter: G1/2<br />Flow Range: 1.2-12L/min<br />Max Switch Voltage: DC250V<br />Max Contact Rating: 70W<br />Max Current: 10mA<br />Maximum Water Pressure: 1.75MPa<br />Cable Length: 33cm<br />Size: 62mm x 28mm x 29mm(L*W*H)<br />Ingress Protection Rating: IP65<br />Color: Brass Tone<br />Net Weight: 153g<br /><br />Package Included:<br />1 x Water Flow Sensor<br /><br />Note:<br /><br />1. Installed in accordance with flow direction in the product, otherwise there is no signal output.<br />2. A filter screen must be installed at the inlet of the sensor, in order to avoid particles and debris entering the sensor.
