KNACRO DC 24V 2-Channel Relay Moudle High/Low Level Trigger Optocoupler Isolation (DC 24V)

KNACRO DC 24V 2-Channel Relay Moudle High/Low Level Trigger Optocoupler Isolation (DC 24V)

• Using patch optocoupler isolation, drive ability, stable performance; trigger current 5mA;
• Normally open interface Maximum load: AC 250V / 10A, DC 30V / 10A;
• Module operating voltage :DC 24V ;
• Module can be set by Jump cap high or low level trigger;
• Fault-tolerant design, even if the control line off, the relay will not work;

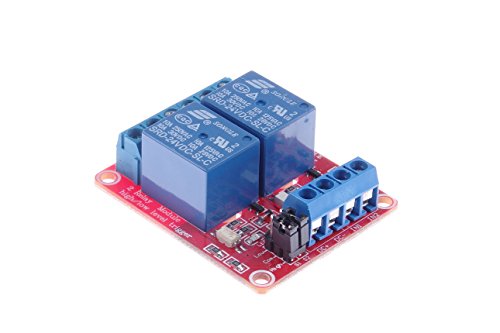

Using patch optocoupler isolation, drive ability, stable performance; trigger current 5mA;<BR> Normally open interface Maximum load: AC 250V / 10A, DC 30V / 10A;<BR> Module operating voltage :DC 24V ;<BR> Module can be set by Jump cap high or low level trigger;<BR> Fault-tolerant design, even if the control line off, the relay will not move;<BR> Power indicator (green), relay status indicator (red);<BR> All interfaces can be directly connected through the terminal lead;<BR> Module size: 50 * 41 * 18.5mm (L * W * H);<BR> With 4 fixed bolt holes, spacing 44.5mm * 35.5mm;<BR> <BR> Module Interface:<BR> 1, DC +: then the power supply positive (voltage according to the relay requirements, with 5V.12V and 24V choice);<BR> 2, DC-: connected to the power supply negative;<BR> 3, IN1: 1 signal trigger side, you can set the high or low level control relay pull;<BR> 4, IN2: 2-way signal trigger side, you can set the high or low level control relay pull;<BR> Relay output:<BR> 1, NO1: 1 relay normally open interface;<BR> 2, COM1: 1 relay common interface;<BR> 3, NC1: 1 relay normally closed interface;<BR> 4, NO2: 2 relay normally open interface;<BR> 5, COM2: 2 relay common interface;<BR> 6, NC2: 2 relay normally closed interface;<BR> <BR> Technical Parameters:<BR> Relay version: 24V;<BR> Quiescent current: 5mA;<BR> Maximum current: 50mA;<BR> Trigger current: 2-4mA;<BR> Trigger voltage (low level): 0-8V;<BR> Trigger voltage (high level): 8.5-24V; <BR> High and low trigger select side:<BR> 1.S1 for 1-Channel relay high and low trigger selection;<BR> 2.S2 for 2-Channel relay high and low trigger selection;<BR> 3.COM and LOW connection, the corresponding relay is low-level trigger, COM and HIGH-side connection is high when the trigger.<BR> <BR> Package Included:<BR> 1*DC24V 2-Channel Relay Moudle
