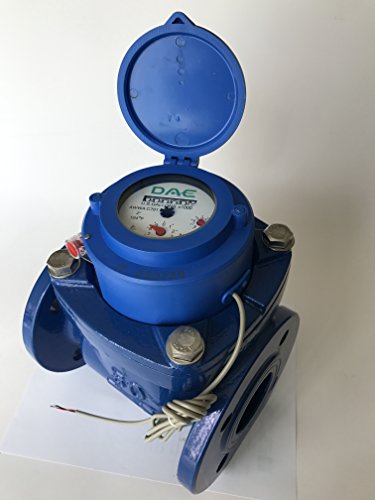

DAE WP-200P 2" Woltmann Helix Water Meter, Pulse Output, Gallon

DAE WP-200P 2" Woltmann Helix Water Meter, Pulse Output, Gallon

• Cloud Metering available with DAE 2030 Gateway. DAE CC2030 gateway will get the water consumptions from DAE AMR (Auto Meter Reading Module with RS485 communication for 16 water meters with Pulse Output) or DAE AMR130 (for 1 meter) and send them to the cloud (DAE server) through Ethernet. With PC or cell phone or tablet, the building owners or property managers will therefore be able to get access to real time data as well as the monthly water consumption and billing reports to their tenants.
• Factory calibration certificates available for government contracts.
• Ready for use with CO-10 Electronic Pulse Counter - An inexpensive remote reading solution.
• Wireless remote reading available with DAE RF converters. If you are interested in cloud metering or wireless water management or looking for a large quantity, please contact us.
• Most of our customers will be able to receive their items in 3 business days (Continental US). If you order by 4:30pm Eastern Time Monday through Friday and by 1pm Saturday, we shall deliver in the same day.

<br>Type: 2 inch Woltmann Helix Water Meter with Pulse Output, Measuring in Gallon.<br>Model: DAE WP-200P.<br>Ready for use with DAE AMR130 (Auto Meter Reading Module for water meter), and AMR (for 16 water meters) for remote reading.<br>Only two wire connection between water meter and AMR or AMR130 or CO-10. It is not required for additional power source.<br>If you are interested in cloud metering or wireless management or looking for a large quantity, please contact us.<br>Connection: ASME Class 125 Flanges per B16.1<br>Sealed Dry Dial for Clear Readings<br>Mount: Horizontal position with register facing upward is recommended however any position is acceptable.<br>Meter must be installed with direction of flow as indicated by arrow cast into the meter body.<br>Install valve before inlet of meter. A valve at outlet is also recommended.<br>Install meter in a location with at least 10 diameters of straight pipe at the inlet and 5 diameters at the outlet to assure proper flow profile to meter.<br>Unit: Totalizer Measuring in Gallon, GPM<br>Accuracy: ±2% as per AWWA C701 test procedure.<br>Gallon Per Pulse: 100. The pulse emitter device consists of a plastic housing with Reed Switch and 1.5 m cable with 2 cores in red and black.<br>Meter Body: Cast iron, epoxy coated<br>Item dimension: 7.87 inch length, 6.5 inch Width, 10.1 inch height. Weight: 28 lbs.<br>Max. Reading:999,999,999, Min. Reading:0.1. Reading on 6th picture of the listing is 382.4 gallons.<br>Max. working pressure: 200 psi<br>Max temperature: 104F (40C)<br>Conforms to AWWA C701 and ISO 4064.<br>The meter register assembly can be removed for repair or replacement without disrupting the process flow.<br>Operate at low pressure loss and offer excellent accuracy.<br>Maximum Flow Rate: 160 GPM, Nominal Flow Rate: 80 GPM, Minimum Flow Rate: 4 GPM, Transition Flow Rate: 13 GPM<br>Ready to interface with DAE software EnergyLink400 for remote reading and billing. 2 year warranty from the seller.
