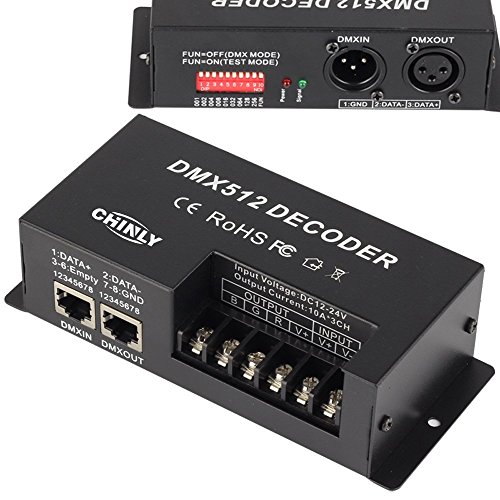

CHINLY 3 Channel 30A RGB DMX 512 LED Decoder Controller DMX dimmer use for DC12-24V RGB LED strip

CHINLY 3 Channel 30A RGB DMX 512 LED Decoder Controller DMX dimmer use for DC12-24V RGB LED strip

• Automatically adapt to DC12V-24V
• Input Signal: DMX512/1990
• 10A each channel max 30A,Maximum power load: 360W (12V) 720W (24V)
• RGB 3 Channel,1 group
• Use for LED strip,LED module,LED light

<b>3CH-DMX512 Constant decoder Operation:</b><br> Welcome to use the 3CH constant decoder, which take advantage of advanced microelectronic control technology. This technology changes the international fashion DMX512/1990 standard digital control signals into analog control signals. There are 1 ~ 3 output channels; each channel can achieve 256 control levels. This constant decoder is used when DMX512 control equipment control general LED lighting.<br> <b>Products Performance:</b><br> Input Power: DC12V-DC24V <br> Maximum load current: 30A/3CH<br> Maximum power load: 360W (12V) 720W (24V) <br> Output gray level: 256 <br> Input Signal: DMX512/1990<br> Output signal: 3 channels Constant PWM <br> Output DMX : 3 channels<br> DMX512 socket standard XLR-3 caron plug,RJ45RJ45<br> Engine size: L5.8in*W2.5in*H1.6in<br> Warranty:1 year<br> Weight:0.74lb<br> <b>Basic functions:</b><br> There are 3 output channels, can connect with single or RGB lamps<br> 0-100% dimming output, each channel 256 gray levels<br> International standard DMX512 input protocol, address code set by DIP switches;<br> Wide voltage DC input DC12V ~ DC24V;<br> Each occupied by 3 DMX address.<br> <br> <b>Package Included:</b><br> 1x3CH DMX 512 Decoder<br> 1x instruction book<br>
