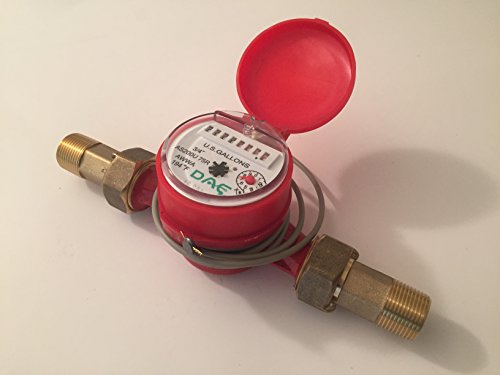

DAE AS200U-75RP 3/4” Hot Water Meter with Pulse Output, Measuring in Gallon + Couplings

DAE AS200U-75RP 3/4” Hot Water Meter with Pulse Output, Measuring in Gallon + Couplings

• Cloud Metering available with DAE 2030 Gateway. CC2030 gateway will get the water consumptions from DAE AMR (Auto Meter Reading Module, RS485, for 16 water meters) or DAE AMR130 (Auto Meter Reading Module, RS485, for 1 water meter) and send them to the cloud (DAE server) through Ethernet. With PC or cell phone or tablet, the building owners or property managers will therefore be able to get access to real time data as well as the monthly water consumption and billing reports to their tenants.
• Wireless remote reading available with DAE RF converters.
• Ready for use with CO-10 Electronic Pulse Counter - An inexpensive remote reading solution. Ready for use with DAE AMR130 (http://www.amazon.com/dp/B01DCDH90U , Auto Meter Reading Module for single water meter) and AMR (http://www.amazon.com/dp/B01DBB8CQ8 , for 16 water meters) for remote reading
• If you are interested in cloud metering or wireless water management or looking for a large quantity, please contact us.
• Most of our customers will be able to receive their items in 3 days (Continental US). If you order by 11:30am Eastern Time Monday through Saturday, we shall deliver in the same day.

<br>Type: 3/4" Hot Water Meter with Pulse Output, Measuring in Gallon + Couplings.<br>Model: DAE AS200U-75RP.<br>Mount: Horizontal Inline mount<br>Unit: Totalizer Measuring in Gallon, GPM<br>Accuracy: +/1.5% within normal flow as per AWWA Standard<br>Pulse Output: 1 pulse per 1 gallon<br>Meter body: Bronze<br>Item dimension: 5.12" length, 3.4" wide, 3" height. Shipping weight: 4 lbs.<br>Couplings Included<br>Length without couplings: 5.12 inches, Length with couplings: 9.31 inches.<br>8 digit register counter. The dial is one hundredth gallons (*0.01 gallons). The reading in the listing is 1.97 gallons.<br>Only two wire connection between water meter and AMR or AMR130. It is not required for additional power source.<br>The register head can be freely rotated for convenient viewing<br>Max temperature: 194˚F (90˚C)<br>Conforms to both AWWA and ISO 4046<br>Suitable for residential water metering, for metering the water consumption in your apartments.<br>Maximum Flow Rate: 30 GPM (6.8 m³/h), Normal Flow Rate: 15 GPM (3.4 m³/h), Minimum Flow Rate: 1/2 GPM (0.11 m³/h).<br>The DAE meters have been tested by our QC inspectors in the production line to certify their quality. Therefore the reading will not be zero.<br>The max. working pressure is 150 psi, the requirement from AWWA standard.<br>There is a certification called NSF61 in US to certify if a water meter is lead-free or not. DAE AS series water meters are not NSF61 certified. It is DAE MJ series water meters which are NSF 61 certified. California, Vermont, Maryland and Louisiana state laws require that all the water meters used their states be NSF61 certified.<br>DAE AS series is single jet water meter, smaller in size. DAE MJ series is multi-jet water meter, bigger in size. If you are looking for bigger water meter, please choose MJ series.<br>2 year warranty from the seller.<br>See DAE Controls website for more information.
