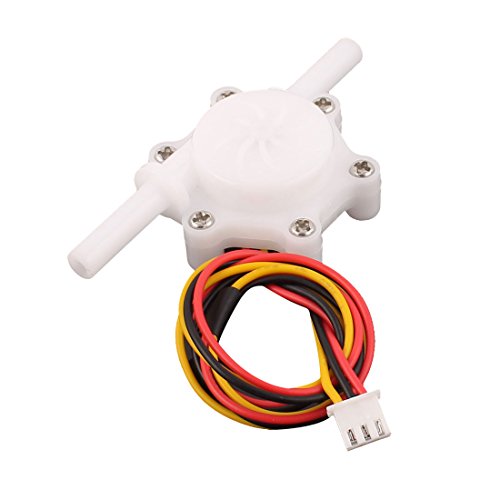

uxcell 6mm Diameter Hall Effect Water Flow Sensor Flowmeter Fluid Meter 0.3-4.5L/min DC5V 0.8MPa

uxcell 6mm Diameter Hall Effect Water Flow Sensor Flowmeter Fluid Meter 0.3-4.5L/min DC5V 0.8MPa

• All materials are in line with ROHS testing standards.
• Lght weight, small size, easy to install.
• Three wire connection: Red for positive, black for negative, yellow for pulse signal.
• The water flow sensor is applied for water heater, and can be used as flow switch.
• Maximum water pressure: 0.8MPa, flow range: 0.3-4.5L/min

Descriptions:<br />The Water Flow Sensor is light, nimble outline, small size and easy to install. The bearings used in the rotating part. All materials are in line with ROHS testing standards.<br />Three wire connection: Red for positive, black for negative, yellow for pulse signal.<br />The cumulative flow pulse conversion ratio 1L WATER=1146pulse+/-10%<br />Flow 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.2 1.5 L/min<br />Pulse 4.7 6.5 8.2 9.8 11.5 13.9 15.6 17.4 20.9 26.7 Hz<br />Flow 2.0 2.5 3.0 3.5 4 4.5 L/min<br />Pulse 36.2 47 55.6 65.2 75.8 88.3 Hz<br /> <br />Specifications:<br />Product Name: Water Flow Sensor<br />Material: Plastic(Shell)<br />Liquid Temperature: Not More Than 60C<br />Working Voltage Range: DC 4.5V~18V<br />Rated Voltage: DC 5V<br />Max Current: 10mA(DC 5V)<br />Maximum water pressure: 0.8MPa<br />Flow Range: 0.3-4.5L/min<br />Connector Tube Dia.: 6mm<br />Connector: Male XH-3P Plug<br />Cable Length: 33cm<br />Size: 86mm x 40mm x 22mm(L*W*H)<br />Color: White<br />Net Weight: 31g<br /> <br />Package Included:<br />1 x Water Flow Sensor<br />
