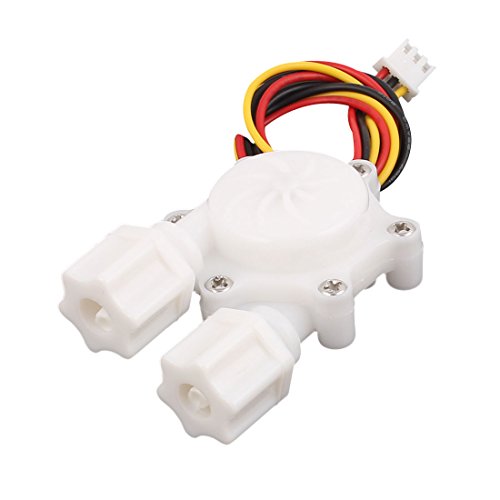

Uxcell G1/4" Hall Effect Liquid Water Flow Sensor Switch Flowmeter Fluidmeter, 0.3-3.0L/Min

Uxcell G1/4" Hall Effect Liquid Water Flow Sensor Switch Flowmeter Fluidmeter, 0.3-3.0L/Min

• All materials are in line with RoHS testing standards
• Light weight, small Size, easy to install
• Three wire connection: red for positive, black for negative, Yellow for pulse signal
• The water flow sensor is applied for water heater, and can be used as flow switch
• Maximum water pressure: 0.8MPa, flow range: 0.3-3.0L/min

Descriptions: 1. The water flow sensor is light, nimble outline, small size and easy to install. The bearings used in the rotating part. All materials are in line with RoHS testing standards. 2. There is an integrated magnetic Hall effect sensor that outputs an electrical pulse with every revolution. The Hall effect sensor is sealed from the water pipe and allows the sensor to stay safe and dry. 3. Three wire connection: red for positive, black for negative, yellow for pulse signal. Specifications: product name: water flow sensor material: plastic liquid temperature: not more than 60C working voltage range: DC 4.5V~18v rated voltage: DC 5V max current: 15ma(dc 5V) maximum water pressure: 0.8Mpa flow range: 0.3-3L/min connector: male xh-3p plug cable Length: 33 cm size: 53mm x 40mm x 22mm(l*w*h) external diameter of connector: G1/4 inch color: white net weight: 33G package included: 1 x water flow sensor
