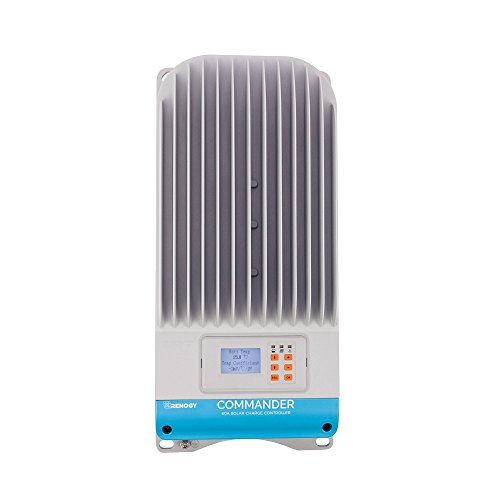

Renogy Commander 60 Amp 12V/24V/36V/48V MPPT Negative Ground Solar Charge Controller Regulator Compatible with Sealed Lead-acid, Flooded, and Gel Batteries

Renogy Commander 60 Amp 12V/24V/36V/48V MPPT Negative Ground Solar Charge Controller Regulator Compatible with Sealed Lead-acid, Flooded, and Gel Batteries

• Advanced maximum power Point tracking technology with High tracking efficiency as high as 99.7%.
• Multiphase synchronous rectification technology ensuring peak conversion efficiency up to 98.7%.
• Optimizes charging current smoothness, reduces ripples, and improves the system generating efficiency.
• Electronic protection against overcharging, over-discharging, overload, and short circuit.
• The cast aluminum radiator shell permits excellent heat dissipation, allowing natural cooling.

<p>This new and improved Commander 60A Charge Controller offers much more then your standard charge controller. Unlike a basic PWM Controller, the Commander is compatible with sealed lead-acid, flooded, and gel batteries (all deep cycle). This highly efficient charge controller keeps the batteries from becoming over-charged or over-discharged. This protection features increases the longevity of the battery bank. This high tech controller also features Multiphase Synchronous Rectification and Maximum Power Point Tracking technologies, which increase charging efficiency and improve system performance. Adding on the Renogy EP USB Connector will only further improve a solar power system by allowing for complete monitoring from a PC. Adding the Commander 60A Controller to a power system will ensure high quality performance.</p> <p>Specifications</p> <p>Nominal System Voltage: 12v/24v/36v/48v/ Auto Recognition</p> <p>Rated Battery Current: 60A</p> <p>Max. Solar Input Voltage: 150VDC</p> <p>Max. Input Short Current: 75A</p> <p>Max. Terminal: 35mm2</p> <p>Mounting Oval: 16.9in x 7.1in</p> <p>Dimensions: 17.7in x 8.2in x 4.2in</p> <p>Max. Solar Input Power: 800W (12V), 1600W (24V), 2400W (36V), 3200W (48V)</p> <p>Grounding: Negative</p> <p>Self-consumption:1.4W to 2.6W</p> <p>Communication: RS485 Cable</p> <p>Temp. Compensation: -3mV/°C/2V (default)</p> <p>Weight: 12.1 Lbs</p>
