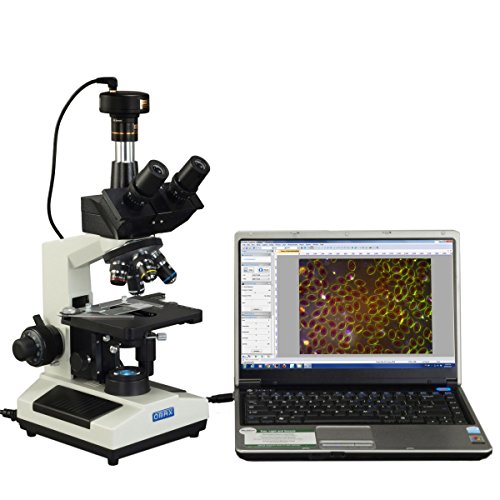

OMAX 40X-2500X Brighter Darkfield LED Trinocular Compound Microscope with 9MP Digital Camera

OMAX 40X-2500X Brighter Darkfield LED Trinocular Compound Microscope with 9MP Digital Camera

• Total magnification: 40X-100X-250X-400X-1000X-2500X; Eyepieces: widefield WF10X/18 and WF25X; Objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling trinocular; Interpupillary distance: sliding adjustable 2-3/16inch ~ 2-15/16inch (55mm ~ 75mm)
• Diopter: adjustable on both eyepiece tubes; Nosepiece: revolving quadruple; Stage: mechanical stain-resistant double layer, size: 5-1/2inch x 5-1/2inch (140mm x 140mm), translation range: 3inch x 2inch (75mm x 50mm); Photo tube adjustment range: 5/8inch (15mm); Focus: coaxial coarse and fine focus knobs on both sides, rack and pinion adjustment, with tension control; Focusing knob can be locked for observation and transportation
• Brightfield condenser: NA1.25 Abbe condenser with iris diaphragm and filter holder, rack and pinion adjustment; Oil darkfield condenser: NA 1.36-1.25 condenser; Black palm rest on the base; Illumination: transmitted (lower), replaceable 3W LED light, variable intensity; Metal mechanical components; Power supply: 100V~240V 50/60Hz worldwide range (US and Canada power plug)
• Digital camera: - true color 3488x2616 pixels (9M pixels) - 0.5X reduction lens to get larger field of view - 0.01 mm calibration slide: 1mm/100 division - Frame rate: 1.9fps at 3488x2616, 8fps at 1744x1308, 27fps at 872x654 - Software compatible with Windows XP/Vista/7/8/10, Mac OS and Linux operating system - Capturing microscope images, recording live video, measuring lengths, angles, areas, editing images - USB cable included
• 5-year warranty against manufacturing defects

The trinocular compound LED microscope 40X-2500X provides 9MP USB digital imaging system and darkfield & brightfield microscope system. The laboratory microscope features an optical system for simultaneously observing images through eyepieces and an adjustable trinocular port. The 3488x2616 pixels USB digital imaging system that captures still microscope images and live video on computer. The included software compatible with windows, Mac OS and Linux operating system can also be used to make measurements. All lenses are made of high quality optical glass. The high resolution image in the field of view is crystal clear and will satisfy the demands of professionals. This trinocular microscopy is good for teaching, demonstration, clinical examination and research purpose.
