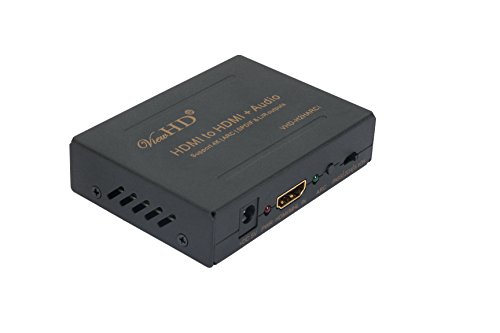

ViewHD HDMI Audio Extractor Support Ultra HD | 4K | ARC | MHL | TOSLINK Optical Audio Output + RCA L/R Audio Converter | VHD-H2HARCi

ViewHD HDMI Audio Extractor Support Ultra HD | 4K | ARC | MHL | TOSLINK Optical Audio Output + RCA L/R Audio Converter | VHD-H2HARCi

• One HDMI / MHL Input Converted to Three Outputs: HDMI, SPDIF and R/L
• HDMI v1.4; Support 1080P + 3D; Support CEC
• Support Ultra HD / 4K, 4096x2160@24fps or 3820x2160@30fps
• Support ARC Audio Extraction; ARC audio signal is available from the Toslink Output
• Built-in Three Audio EDID Modes: PASS / 2.0CH / 5.1CH

VHD-H2HARCi is the latest generation of the ViewHD HDMI Audio Extractor with MHL, Ultra HD / 4K and ARC supports. It can extract digital audio signal form the HDMI input and present it in digital SPDIF output or analog L/R output, for audio receiver / amplifier / headphone applications. The unit does not change incoming video and audio formats. HDMI output signals (audio and video) are identical to the HDMI input signals (audio and video). <br> <br> This newer version incorporates special Audio EDID settings for flexible and advanced audio applications. The three special EDID settings are implemented to make the product more user friendly and provide more controls for various applications. <br> <br> L/R output will support PCM 2CH stereo and SPDIF will support audio formats up to Dolby Digital 5.1CH or DTS 5.1CH, therefore when the incoming HDMI audio is 2CH stereo, the SPDIF and L/R outputs will work at the same time; when the incoming HDMI audio is Dolby Digital 5.1CH or DTS 5.1CH, the SPDIF will work, but the L/R output will not work; when the incoming HDMI audio format is higher than Dolby Digital 5.1CH or DTS 5.1CH, such as Dolby Digital Plus, PCM 5.1CH, PMC7.1CH including Dolby TrueHD and DTS-HD Master Audio, both the SPDIF and L/R outputs will not work. Buyer can still obtain these advanced audio signals from the HDMI output, because the HDMI output signal is identical to the HDMI input signal. <br> <br> Use ARC button to turn on / off the ARC function as indicated by the ARC LED light; To use ARC function: 1)the ARC LED light must be on; 2) the display connected to HDMI output must support ARC and a HDMI v1.4 cable must be used to connect the HDMI output to the ARC enabled HDMI input of the display; 3) ARC audio is available from the SPDIF optical output ONLY. Typically, ARC audio uses Dolby Digital 5.1CH / AC3 format for audio system / receiver application. <br> <br> ViewHD One Year Warranty.<br><br>
