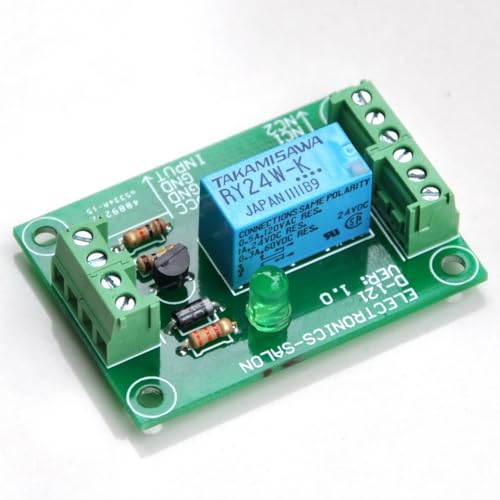

ELECTRONICS-SALON DPDT Signal Relay Module, 24Vdc, RY24W-K Relay. Has Assembled.

ELECTRONICS-SALON DPDT Signal Relay Module, 24Vdc, RY24W-K Relay. Has Assembled.

• This item has been assembled, and electrical test passed.
• Size: 50 x 34.9 x 16 mm (approximately 2" x 1.37" x 0.64"), PCB thickness: 1.6mm.
• Power Supply: 24V DC / 25mA (relay ON).
• high quality signal relay, FR-4 Fiber glass PCB, darlington transistor driving relay, LED indicator for relay action.
• Relay Contact Material: Gold Overlay Silver-Palladium.

<p>1 Piece DPDT Signal Relay Module Board.<br> <br> This item has been assembled, and electrical test passed.<br> High quality signal relay, FR-4 Fiber glass PCB, darlington transistor driving relay, LED indicator for relay action.<br> Size: 50 x 34.9 x 16 mm (approximately 2" x 1.37" x 0.64"), PCB thickness: 1.6mm.<br> <br> Power Supply: 24V DC / 25mA (relay ON).<br> <br> Input control signal voltage: <br> 0V - 0.5V Low stage (relay is OFF),<br> 0.5V - 2.5V (unknown state).<br> 2.5V - 24V High state (relay is ON).<br> Input control signal high state current:<br> 2.5V: 0.1mA<br> 5V: 0.35mA<br> 12V: 1.1mA<br> 20V: 1.9mA<br> <br> Relay: <br> RY24W-K signal relay.<br> Contact Material: Gold Overlay Silver-Palladium.<br> <br> This is a very simple module board, no paper specifications, any questions, feel free to tell me.<br> 　</p>
