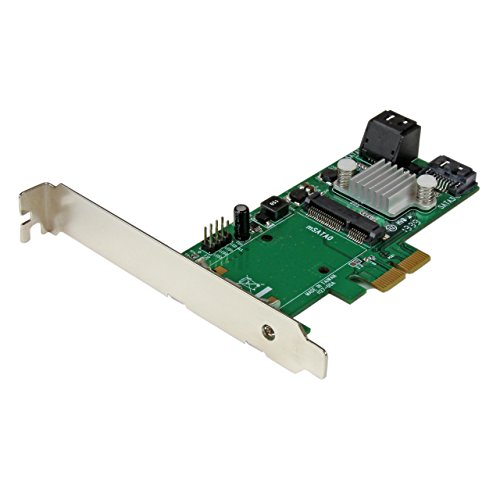

StarTech.com 3 Port PCI Express 2.0 SATA III 6 Gbps RAID Controller Card w/mSATA Slot and HyperDuo SSD Tiering - PCIe SATA 3/mSATA Card

StarTech.com 3 Port PCI Express 2.0 SATA III 6 Gbps RAID Controller Card w/mSATA Slot and HyperDuo SSD Tiering - PCIe SATA 3/mSATA Card

• Add 1 internal mSATA slot and 3 internal SATA III (6Gbps) ports to a computer through a PCI Express x2 slot
• 3 Port PCIe 2.0 SATA III RAID Controller Card w/ mSATA Slot and HyperDuo SSD Tiering
• PCIe SATA 3 / mSATA Hyperduo Controller Adapter
• Internal mSATA SSD Slot
• Supports HyperDuo SSD Auto-Tiering
• Supports Port Multiplier and SSD TRIM

Add 1 internal mSATA slot and 3 internal SATA III (6Gbps) ports to a computer through a PCI Express x2 slot - The PEXMSATA343 3-Port PCI Express 2.0 SATA Card with HyperDuo adds an internal mSATA SSD (Solid State Drive) slot plus three internal SATA III ports to your computer through a PCIe x2 slot, adding multiple 6 Gbps internal connections that enable you to improve the overall speed and storage capacity of your computer by connecting high-performance SSDs and hard drives. Featuring HyperDuo technology, the SATA card offers SSD auto-tiering which lets you balance the performance advantages of SSD storage with the cost-effectiveness and large capacity of standard hard drives. By combining SSD and HDD drives into a single volume (up to 3 SSD + 1 HDD), HyperDuo discreetly works in the background to identify and move frequently accessed files to the faster SSD drive(s) for improved data throughput - up to 80% of SSD performance! (Note: The HyperDuo automatic storage tiering feature is compatible with computers that use a BIOS.) The PCIe SATA controller card offers Port Multiplier (PM) support, so multiple SATA drives can be connected over a single cable, for a total of 7 drives (Up to 4 drives through PM on one port, and a single drive to the remaining 2 ports and mSATA slot). Plus, the SATA controller card offers an effective hardware RAID solution, with native RAID (0, 1) support. Throughput Benchmark Drive configuration Throughput Drive size 1 x HDD 112.81 MB/s 2 TB 1 x SSD 490.28 MB/S 120 GB 1 x HDD + 1 x SSD HyperDuo (Safe Mode) 489.28 MB/s 2 TB 1 x HDD + 2 x SSD HyperDuo (Safe Mode) 715.13 MB/s 2 TB Drives Used: SSD: OCZ Vertex 3 Series 2.5” 120 GB (VTX3-25SAT3-120G) HDD: Western Digital Caviar Green 3.5” 2 TB (WD20EARS) Software Used: IO Meter, 256KB Sequential Read, queue depth = 10 You can install a SSD directly to the card via a convenient metal latching clip to help relieve the internal space constraints often associated with multiple hard drive configurations. Plus the controller card also includes a low profile/half-height installation bracket for small form factor (SFF) systems.  Backed by a StarTech.com 2-year warranty and free lifetime technical support.
