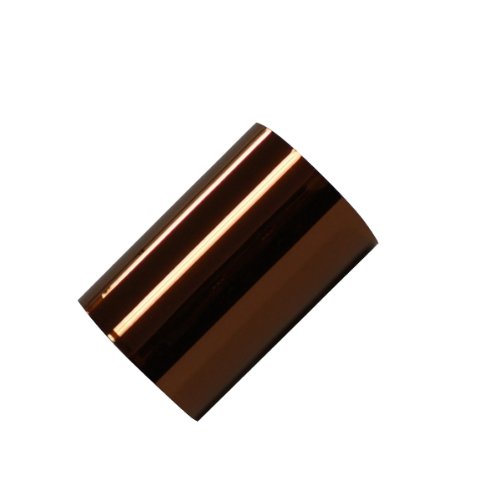

1 Mil Kapton Tape (Polyimide) - 5" x 36 yds

1 Mil Kapton Tape (Polyimide) - 5" x 36 yds

• 1 Mil Polyimide Tape (Kapton®) RoHS compliant
• 1 Mil Polyimide Tape is silicon adhesive protection leaves no residue.
• 1 Mil Polyimide Tape is thin and conformable enabling masking of uneven surface
• 1 Mil Polyimide Tape shows excellent electrical insulation.
• 1 Mil Polyimide Tape maintains high temperature resistance as high as 400F.

1Mil Kapton tape is developed by Dupont which is a HN general purpose film with silicon adhesive. Kapton® polyimide films shows excellent electrical insulation properties, high temperature resistant, and excellent solvent resistant. Kapton tape combines excellent physical, electrical, and mechanical properties, and has been used in applications at temperatures as low as -273°C (-459°F) and as high as 400°C (752°F).</p> <p><b>Technical Data Sheet:</b></p> <p><b>Color:</b> Amber<br /> <b>Adhesion Type:</b> Silicone<br /> <b>Film Thickness:</b> 1.2 Mil<br> <b>Adhesive Thickness:</b> 1.5Mil<br> <b>Total Thickness:</b> 2.7 Mil<br /> <b>Adhesion to Steel:</b> 25 oz//inch<br /> <b>Tensile Strength: </b>30 (lbs/inch)<br /> <b>Elongation:</b> >40 %<br /> <b>Dielectric Strength:</b> 8,000 volts<br /> <b>UL-94 Flammability Rating:</b> V-0<br /> <b>Insulation Resistance:</b> 1,000,000 mega ohms<br /> <b>Electrolytic Corrosion Factor:</b> 1<br /> <b>Insulation Class centigrade:</b> 180°C<br /> <b>Temperature Resistance:</b> 260°C (500°F)<br /> <b>Resistance to acids, oils, solvents:</b> Excellent<br /> <b>Length:</b> 36 yards</p> <p>Due to the variety of possible end-uses, it is ultimately the responsibility of the customer to determine a product's suitability for a particular application.</p> <p>Kapton® is a registered trademark of DuPont
