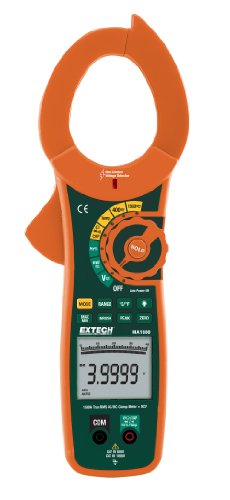

Extech MA1500 True RMS 1500A AC/DC Clamp Meter and NCV

Extech MA1500 True RMS 1500A AC/DC Clamp Meter and NCV

• Integrated non-contact voltage detector
• True RMS for accurate readings of non-sinusoidal waveforms
• Built-in non-contact voltage detector with LED alert
• 2.0-Inch (52mm) jaw size for conductors up to 500MCM
• Dual 40,000/4000 count, backlit LCD display

<b>Extech MA1500 1500A True RMS AC/DC Clamp Meter + NCV; Built-in non-contact Voltage detector with LED alert; 2.0" (52mm) jaw size for conductors up to 500MCM; Dual 40,000/4000 count, backlit LCD display</b> <p>The MA1500 is a 1500A True RMS AC/DC Clamp Meter. 2.0 in. (52mm) jaw size for conductors up to 500MCM with True RMS for accurate readings of non-sinusoidal waveforms. Additional features include: Relative Mode for Capacitance Zero and Offset Adjustment, Data Hold, Peak Hold, MIN/MAX, Auto Power Off, and Inrush function to capture transients during motor startup. Complete with test leads, Type K bead wire temperature probe, 9V battery and carrying case.</p></br> <b>Key Features</b></br><ul> <li>True RMS for accurate readings of non-sinusoidal waveforms</li> <li>Built-in non-contact Voltage detector with LED alert</li> <li>2.0" (52mm) jaw size for conductors up to 500MCM</li> <li>Dual 40,000/4000 count, backlit LCD display</li> <li>Includes Multimeter and Type K Temperature functions</li> <li>Inrush function captures transients during motor startups</li> <li>Relative Mode for Capacitance Zero and Offset Adjustment</li> <li>Data Hold, Peak Hold, MIN/MAX, and Auto Power Off</li></ul></br> <b>Specifications</b></br><ul> <li>Display counts: 40,000/4000 count LCD w/bargraph (backlit)</li> <li>Jaw size/Cable size: 2.0" (52mm); 500MCM</li> <li>AC Current: 1500A</li> <li>DC Current: 1500A</li> <li>Max resolution: 0.01A</li> <li>Basic ACA Accuracy (% rdg): ±2.8%</li> <li>AC Voltage (Max Res.): 750V (0.01mV)</li> <li>DC Voltage (Max Res.): 1000V (0.01mV)</li> <li>Resistance (Max Res.): 40MΩ (0.01Ω)</li> <li>Capacitance (Max Res.): 40mF (0.01nF)</li> <li>Frequency (Max Res.): 40MHz (0.001Hz)</li> <li>Temperature: -148 to 1832°F (-100 to 1000°C)</li> <li>Diode/Continuity: Yes</li> <li>Dimensions: 11.6"x4.1"x1.9" (294x105x47mm)</li> <li>Weight: 18.9oz (536g)</li></ul>
