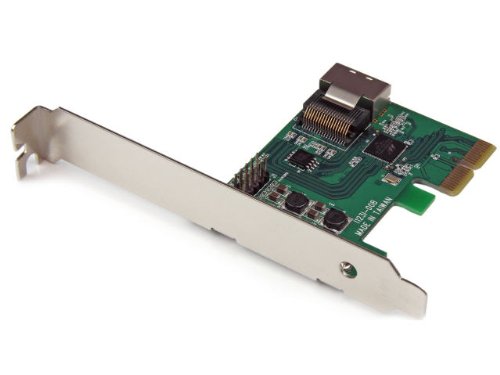

StarTech.com PCI Express SATA III RAID Controller Card with Mini-SAS Connector (SFF-8087) - HyperDuo SSD Tiering - PCIe SATA 6Gb RAID Card

StarTech.com PCI Express SATA III RAID Controller Card with Mini-SAS Connector (SFF-8087) - HyperDuo SSD Tiering - PCIe SATA 6Gb RAID Card

• Leverage SSD performance and standard HDD capacity with HyperDuo technology
• Maximize system capability with SATA III connection speeds
• Eliminate cabling hassles by connecting a single SATA supported Mini-SAS backplane cable
• Supports HyperDuo SSD auto-tiering
• 1x Mini-SAS (SFF-8087) port, expandable to 4 SATA III (6Gbps) ports through a breakout cable (purchased separately)
• Fully compliant with SATA 3.0 specifications and backward compatible with SATA I/II (1.5/3.0Gbps) drives
• Supports hardware RAID 0, 1, and 1+0 modes configured through BIOS
• Compliant with PCI Express 2.0 standards

Add Internal SATA III (6Gbps) support to a computer through a single Mini SAS (SFF-8087) port - The PEXSAT34SFF PCI Express 2.0 SATA Controller Card enables 4 AHCI SATA III connections to be added to a computer through a single internal Mini-SAS (SFF-8087) port. The Mini-SAS connector with Port Multiplier support allows for multiple SATA drives (up to 7) to be connected using a single cable. When used with our SAS8087S4100" text="Mini-SAS to 4x SATA breakout cable or SATSAS425BK" text="Mini-SAS SFF-8087 backplane (accessories not included, SAS drives not supported), you have a complete internal 6Gbps connectivity solution, all from a single card. Featuring HyperDuo technology, the SATA card offers SSD auto-tiering which lets you balance the performance advantages of SSD storage with the cost-effectiveness and large capacity of standard hard drives. By combining SSD and HDD drives into a single volume (up to 3 SSD + 1 HDD), HyperDuo discreetly works in the background to identify and move frequently accessed files to the faster SSD drive(s) for improved data throughput - up to 80% of SSD performance! (Note: The HyperDuo automatic storage tiering feature is compatible with computers that use a BIOS.) Compliant with SATA revision 3.0, this PCI Express SATA RAID card delivers up to 6Gbps of data bandwidth; ideal for high performance hard drives and solid state drives (SSD). Plus, the controller card offers an effective hardware RAID solution, with native RAID (0, 1, 1+0) support. Throughput Benchmark Drive configuration Throughput Drive size 1 x HDD 112.81 MB/s 2 TB 1 x SSD 490.28 MB/S 120 GB 1 x HDD + 1 x SSD HyperDuo (Safe Mode) 489.28 MB/s 2 TB 1 x HDD + 2 x SSD HyperDuo (Safe Mode) 715.13 MB/s 2 TB Drives Used: SSD: OCZ Vertex 3 Series 2.5” 120 GB (VTX3-25SAT3-120G) HDD: Western Digital Caviar Green 3.5” 2 TB (WD20EARS) Software Used: IO Meter, 256KB Sequential Read, queue depth = 10 The PEXSAT34SFF PCIe SATA 6G card is backed by a 2-year StarTech.com warranty and free lifetime technical support.
