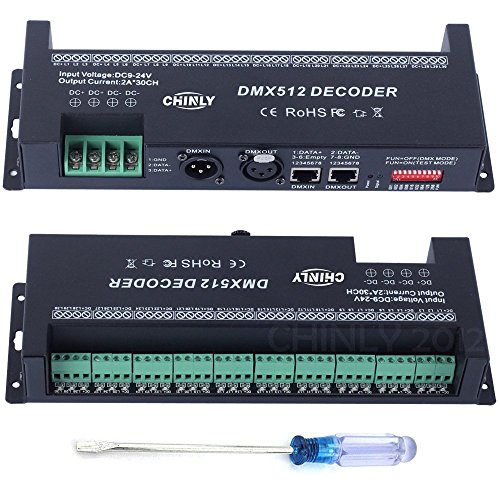

CHINLY 30 channel DMX 512 RGB LED strip controller dmx decoder dimmer driver DC9V-24V 2A/CH (30CH DMX 512 Decoder)

CHINLY 30 channel DMX 512 RGB LED strip controller dmx decoder dimmer driver DC9V-24V 2A/CH (30CH DMX 512 Decoder)

• Automatically adapt to DC9V-24V
• Input Signal: DMX512/1990
• 2A each channel max 60A , Maximum power load: 720W (12V) 1440W (24V)
• RGB 30 Channel,8 group, use for LED strip,LED module,LED light
• Warranty: 100% Satisfaction, quality problems within 3 months, full refund or change new product. Please rest assured that we will provide good service

<b>30CH-DMX512 Constant decoder Operation Instruction</b><br> Welcome to use the 30CH constant decoder, which take advantage of advanced microelectronic control technology. This technology changes the international fashion DMX512/1990 standard digital control signals into analog control signals. There are 1 ~ 30 output channels; each channel can achieve 256 control levels. This constant decoder is used when DMX512 control equipment control general LED lighting<br> <b>Products Performance:</b><br> Input Power: DC9V-DC24V<br> Maximum load current: 2A/CH×30<br> Maximum power load: 720W (12V) 1440W (24V)<br> Output gray level: 256<br> Input Signal: DMX512/1990<br> Output signal: 30 channels Constant PWM<br> Output DMX : 30 channels<br> standard XLR-3 caron plug<br> Engine size: L10.1in*W3.3in*H1.6in<br> Gross Weight:1.6lb<br> <b>Basic functions:</b><br> There are 30 output channels, can connect with single or RGB,RGBW lamps<br> 0-100% dimming output, each channel 256 gray levels<br> International standard DMX512 input protocol, address code set by DIP switches;<br> Wide voltage DC input DC9V ~ DC24V;<br> Each occupied by 30 DMX address.<br> <b>Package Included:</b><br> 1 x DMX 512 Decoder <br> 1 x User Manual<br>
