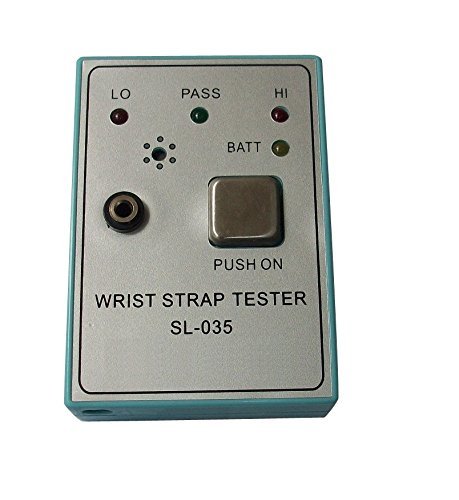

Anti-Static ESD Wrist Strap Tester

Anti-Static ESD Wrist Strap Tester

Overview: <br /> - The static strap function, Wrist Strap Tester can quickly and easily check the following: <br /> Test static strap and ground wire connection <br /> Test the impedance between skin and Static strap <br /> Test the connection during anti-static access panels, cushion for connecting ground <br /> <br /> Feature: <br /> - Quickly and easily check ground systems at any place <br /> - Avoid static electricity to damage the product <br /> - Ensure staff safety <br /> <br /> Specification <br /> - Instruction Impedance calibration: Buzzer <br /> - Low(red): R<800K ohm OFF <br /> - Good(green): 800K ohm<=R<=9M ohm ON <br /> - High(red): R>9M ohm OFF <br /> - Outside size: 80(W)x40(H)x117(D)mm <br /> - Power source: 9V battery <br /> - The length of grounding wire: 2.5m <br /> <br /> Operation: <br /> - Insert the banana plug on the end of the static strap ground cord into the jack located on the front of the wrist strap tester <br /> - The wearer of the anti-static wrist strap then pushes the metal pushbutton on the wrist strap tester <br /> - A properly operating wrist strap will give an "OK" LED indication on the anti-static wrist strap tester. If either RED "FAIL LOW" or YELLOW "FAIL HIGH" LED's light, and the audible indicator sounds, then the wrist strap should be discarded and replaced with a new one <br /> Note: After about 50,000 cycles of operation, when the green "GOOD" LED will light up, but did not issue a sound, Replace the battery <br />
